Ubiquiti

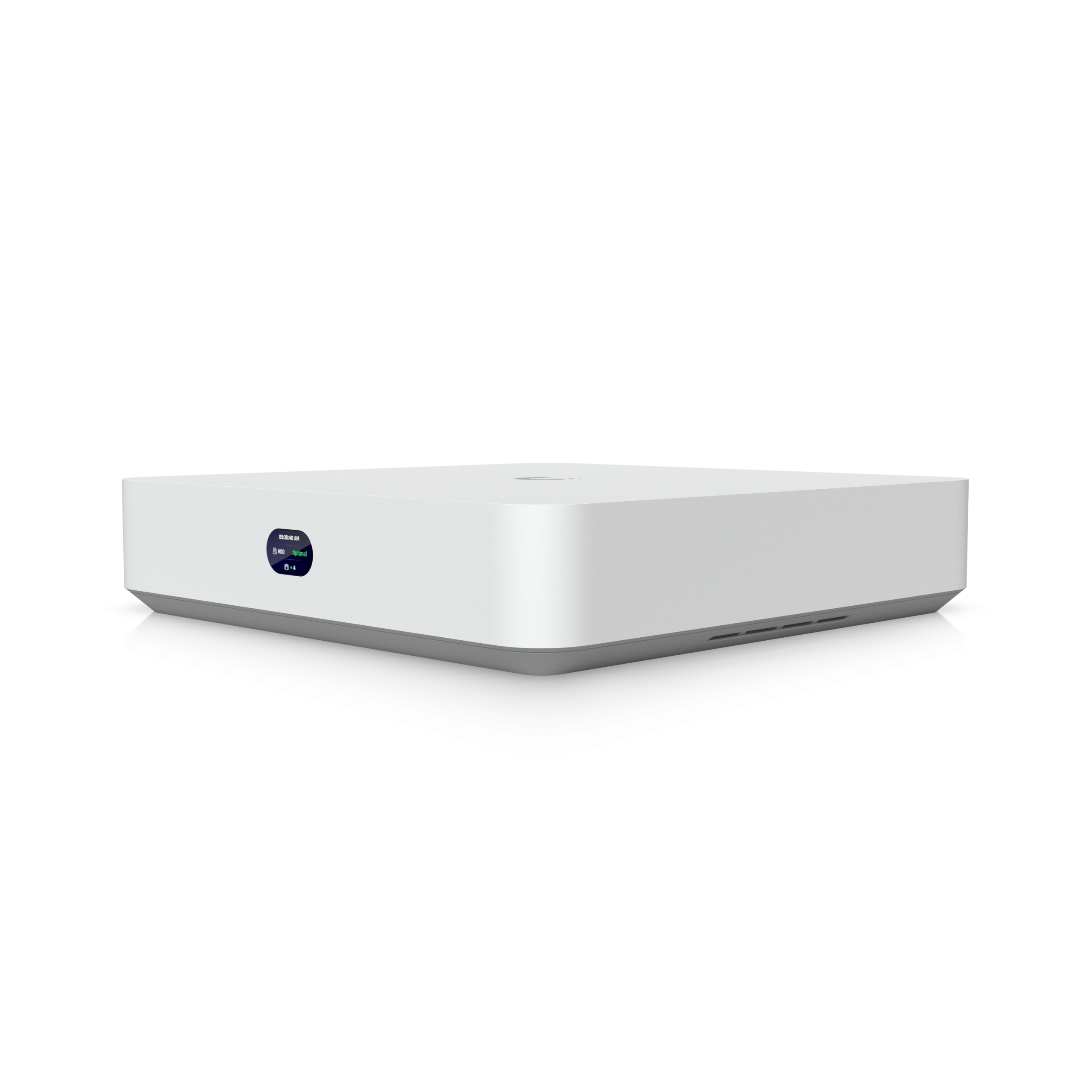

UniFi Network Video Recorder Instant
Compact all-in-one UniFi Protect recorder for smaller premium home and business camera systems.
- Six integrated PoE camera ports
- Local UniFi Protect recording
- Integrated HDMI ViewPort
- Single-drive storage
- No recurring camera licence fees
Why Choose This Product?
A professionally selected recorder for compatible CCTV systems. Aussie Vision confirms camera capacity, PoE requirements, storage, firmware and application compatibility before installation.
Best For
- Premium Home
- Small Business
- Built-in PoE
- UniFi Protect
Key Features
- Six integrated PoE camera ports
- Local UniFi Protect recording
- Integrated HDMI ViewPort
- Single-drive storage
- No recurring camera licence fees
Technical Specifications
Recording
- Manufacturer model
- UNVR-Instant
- Supported camera channels
- 15 HD / 8 2K / 6 4K
- Maximum camera resolution
- Up to 6 × 4K or 15 × Full HD cameras
- Decoding capacity
- Up to 6 simultaneous 4K ViewPort streams
PoE
- Integrated PoE ports
- 6
- PoE standard
- IEEE 802.3af PoE
- PoE budget (W)
- 40 W
- Maximum power per port
- 15.4 W
Storage
- HDD bays
- 1
- Supported drive type
- 3.5-inch HDD
- RAID support
- No
Video Outputs
- HDMI outputs
- 1 integrated HDMI ViewPort
Network
- Ethernet speed
- 1 GbE
- Network interfaces
- 1 × GbE RJ45 uplink; 6 × GbE PoE RJ45 downlinks
Physical
- Dimensions
- 220 × 220 × 47 mm
- Weight
- 1.04 kg
- Operating temperature
- 0°C to 40°C
- Operating humidity
- 5%–95% non-condensing
- Power input
- 100–240 VAC, 50/60 Hz
- Power consumption
- 9 W system; 60 W internal PSU
- Rack mountable
- No
Software
- Mobile application
- UniFi Protect
- Desktop application
- UniFi Site Manager / Protect web application
- Browser management
- UniFi web management
- Ecosystem
- UniFi Protect
- Subscription requirement
- No recurring camera licence fee
Works With
Designed for supported UniFi Protect cameras and current UniFi Protect software.
Need help choosing storage?
Tell us how many cameras you need and how long you would like to retain recordings. Aussie Vision can recommend an appropriate storage configuration.
Professional Installation
Professional CCTV installation available across Melbourne.
Request a QuoteSpecifications, storage capacity and compatibility depend on the exact hardware revision, selected drives, cameras, firmware and system configuration. Final system design is confirmed before installation.
