Ubiquiti

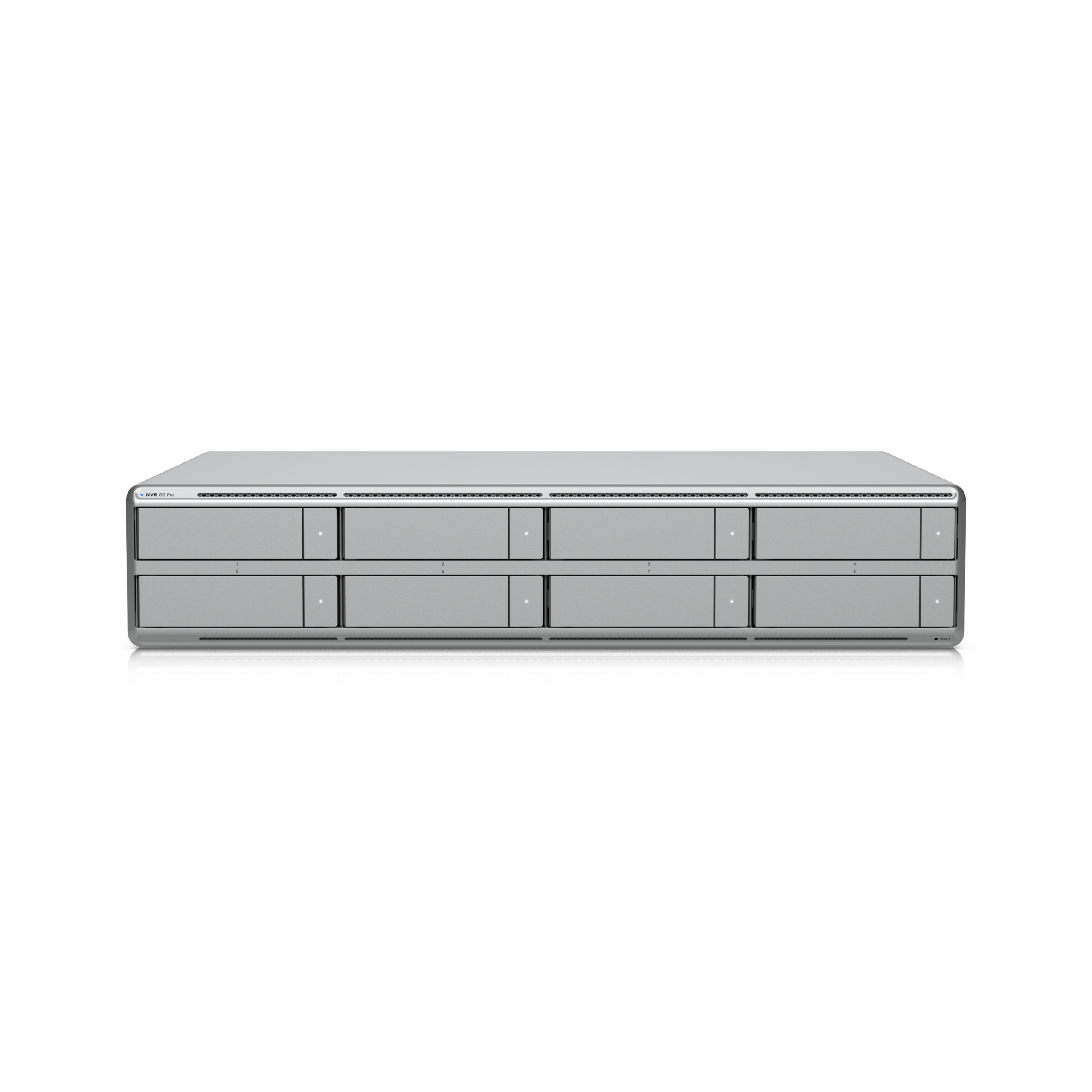

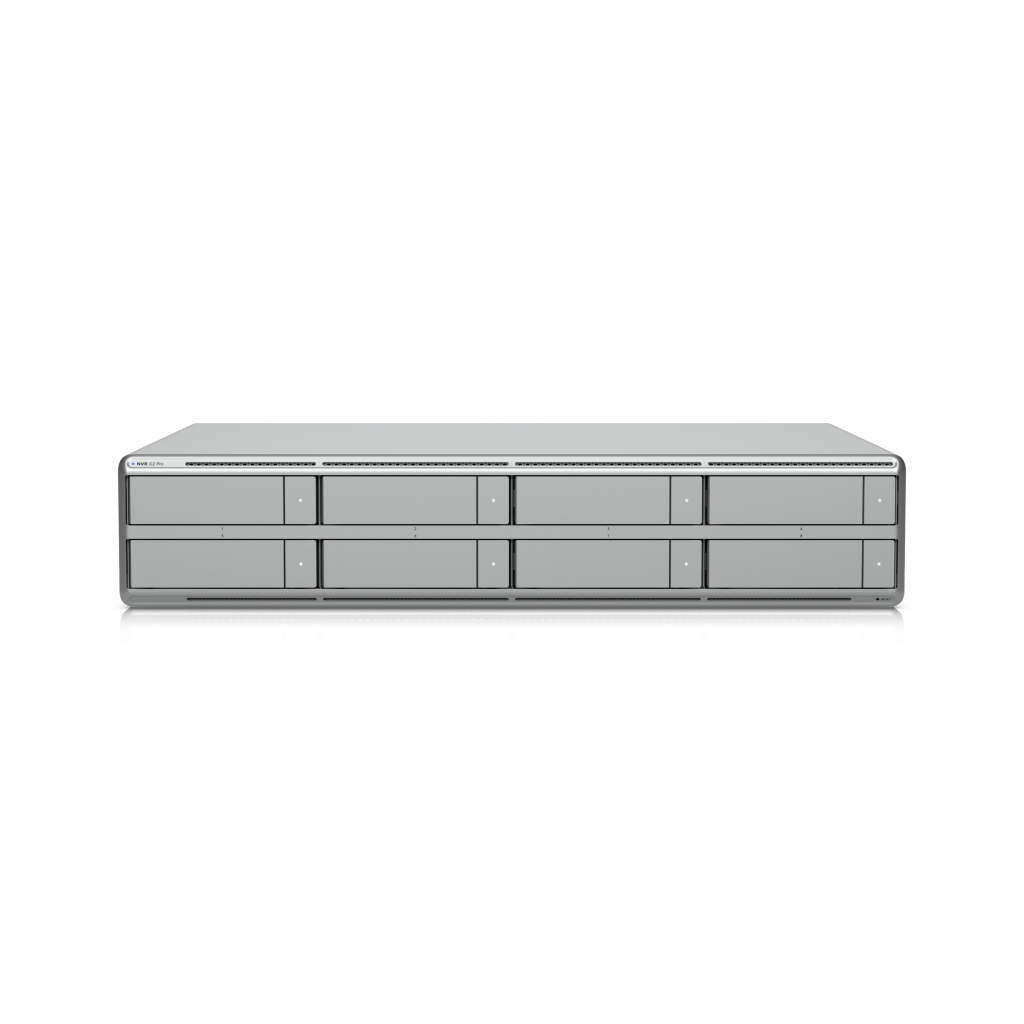

UniFi Network Video Recorder G2 Pro
High-capacity UniFi Protect recorder for larger professional and commercial surveillance systems.
- Eight-drive storage capacity
- RAID data protection
- Large-scale UniFi Protect recording
- High-speed network connectivity
- Integrated HDMI output
- 2U rack-mount installation
Why Choose This Product?
A professionally selected recorder for compatible CCTV systems. Aussie Vision confirms camera capacity, PoE requirements, storage, firmware and application compatibility before installation.
Best For
- Business
- Commercial
- UniFi Protect
- Rack Mount
- RAID
- High Capacity
Key Features
- Eight-drive storage capacity
- RAID data protection
- Large-scale UniFi Protect recording
- High-speed network connectivity
- Integrated HDMI output
- 2U rack-mount installation
Technical Specifications
Recording
- Manufacturer model
- UNVR-G2-Pro
- Supported camera channels
- 100 HD / 70 2K / 50 4K
- Maximum camera resolution
- Up to 50 × 4K or 100 × Full HD cameras
- Decoding capacity
- Up to 16 simultaneous 4K ViewPort streams
Storage
- HDD bays
- 8
- Supported drive type
- 2.5/3.5-inch HDD or SSD
- RAID support
- Yes
- RAID modes
- UniFi Protect managed data protection
Video Outputs
- HDMI outputs
- Integrated HDMI ViewPort
Network
- Network interfaces
- 1 × 2.5 GbE RJ45; 1 × 10G SFP+
- SFP interfaces
- SFP+
- SFP+ interfaces
- 1 × 10G SFP+
Physical
- Dimensions
- 442.4 × 87.4 × 325 mm
- Weight
- 8.4 kg
- Operating temperature
- 0°C to 40°C
- Operating humidity
- 5%–95% non-condensing
- Power input
- 100–240 VAC; USP-RPS 11.5 VDC input
- Power consumption
- 200 W maximum
- Rack mountable
- Yes
- Rack units
- 2U
Software
- Mobile application
- UniFi Protect
- Desktop application
- UniFi Site Manager / Protect web application
- Browser management
- UniFi web management
- Ecosystem
- UniFi Protect
- Subscription requirement
- No recurring camera licence fee
Works With
Designed for supported UniFi Protect cameras and compatible storage.
Need help choosing storage?
Tell us how many cameras you need and how long you would like to retain recordings. Aussie Vision can recommend an appropriate storage configuration.
Professional Installation
Professional CCTV installation available across Melbourne.
Request a QuoteSpecifications, storage capacity and compatibility depend on the exact hardware revision, selected drives, cameras, firmware and system configuration. Final system design is confirmed before installation.
